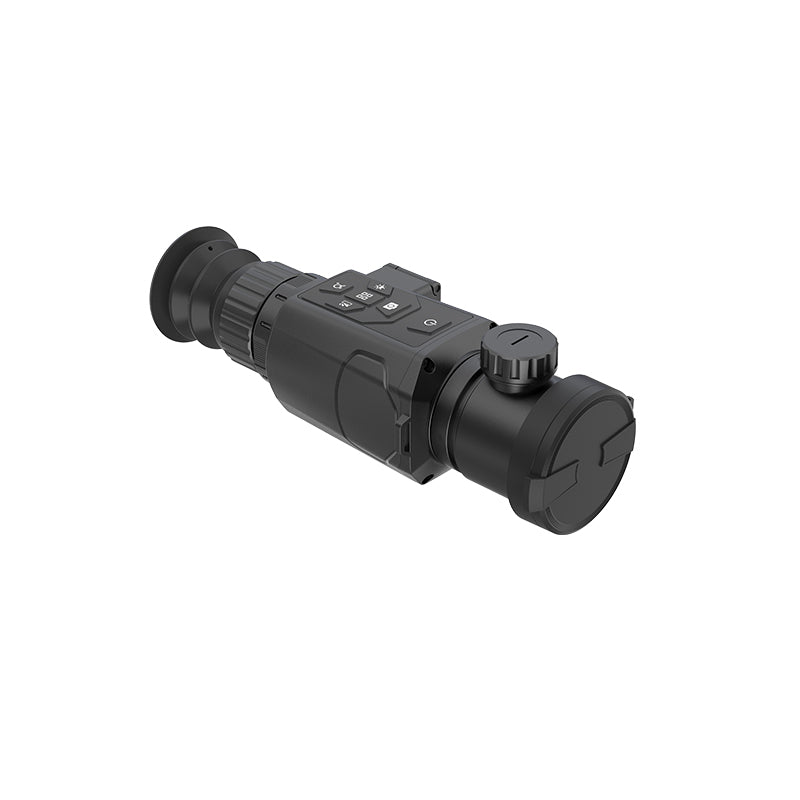

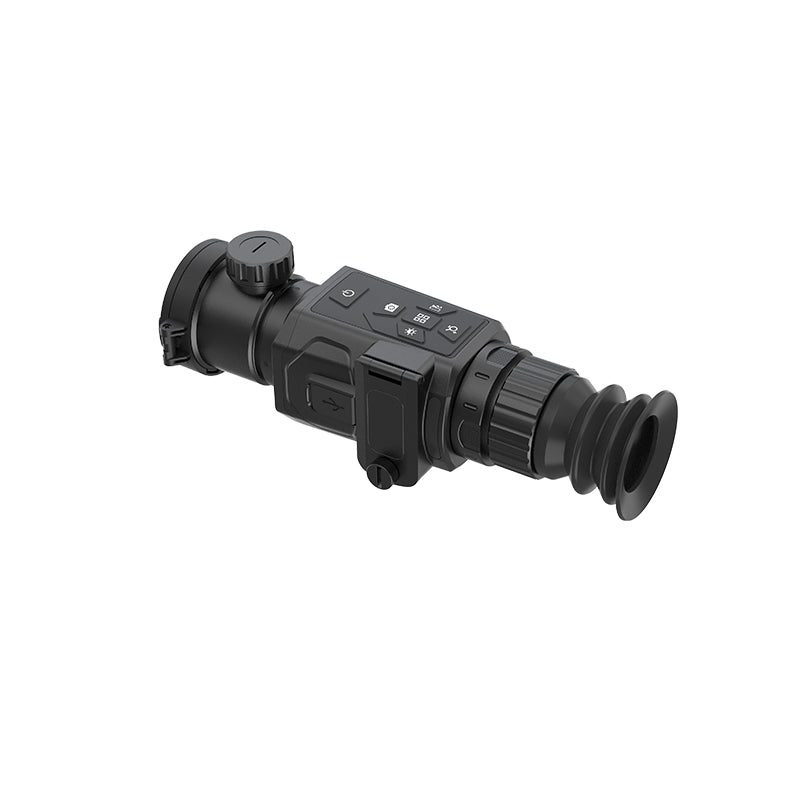

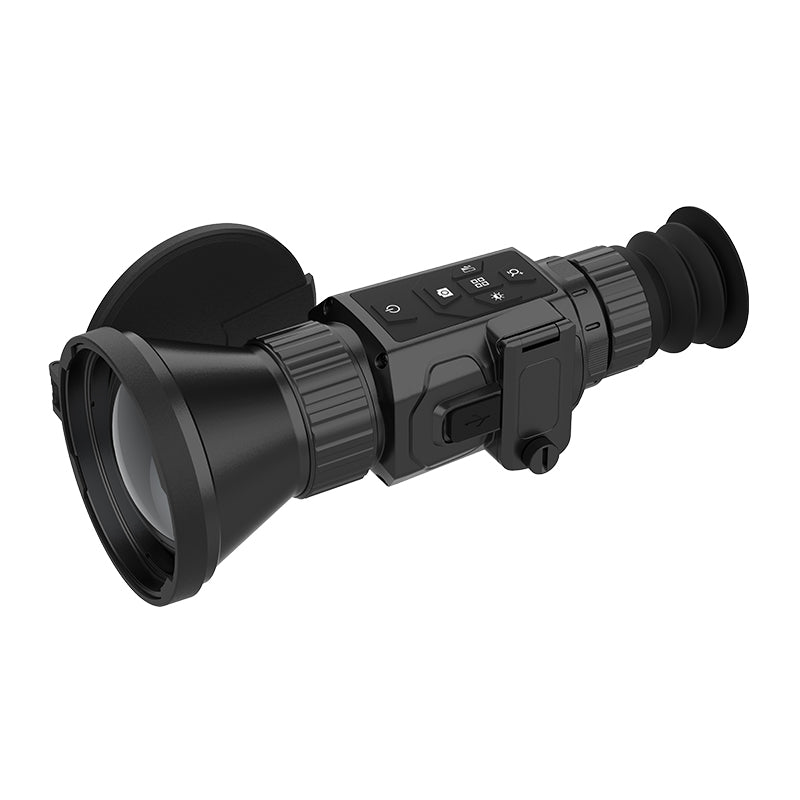

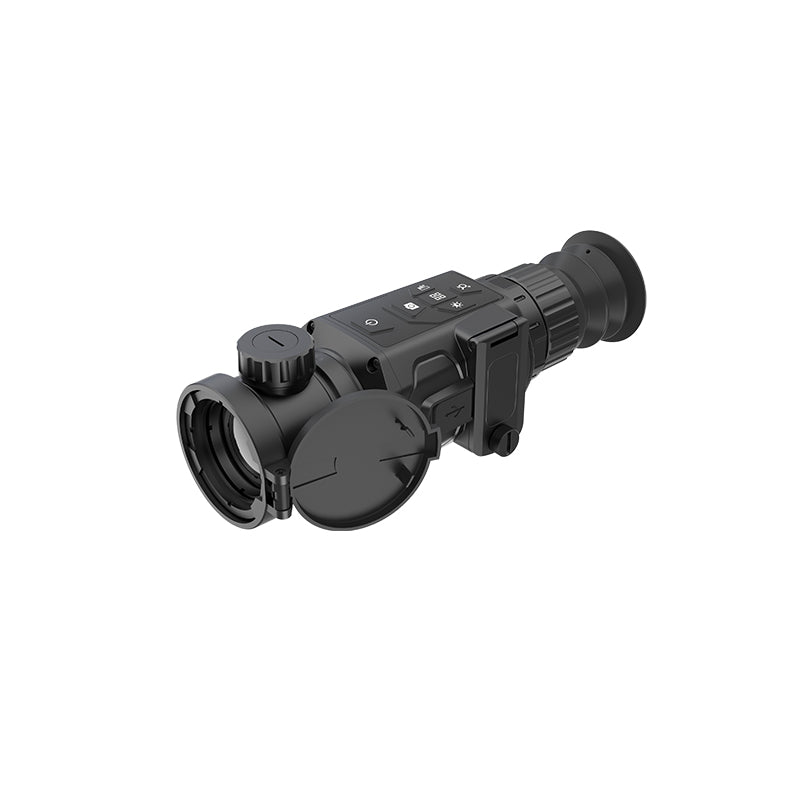

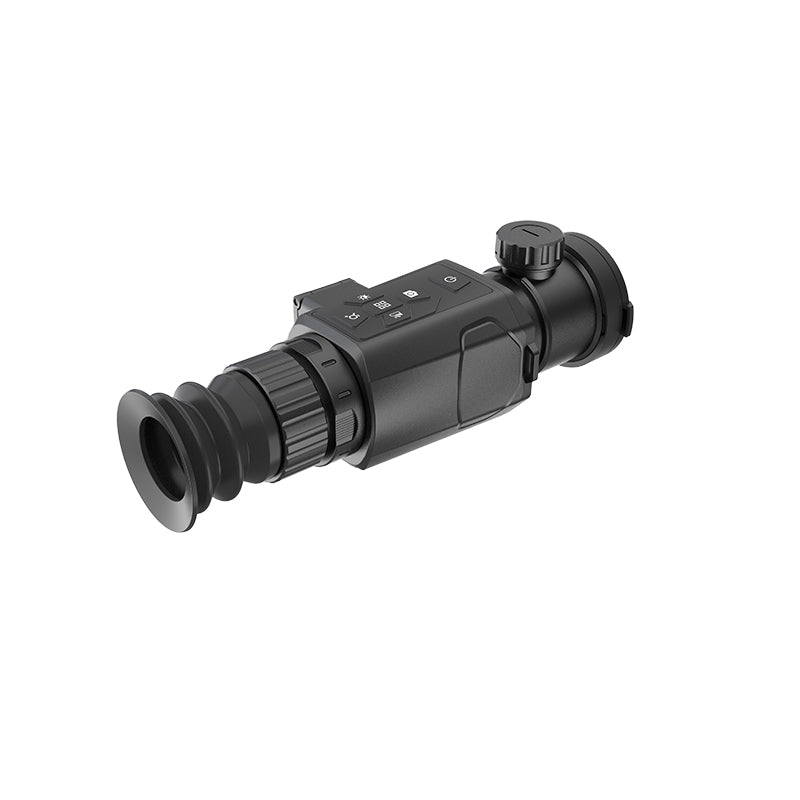

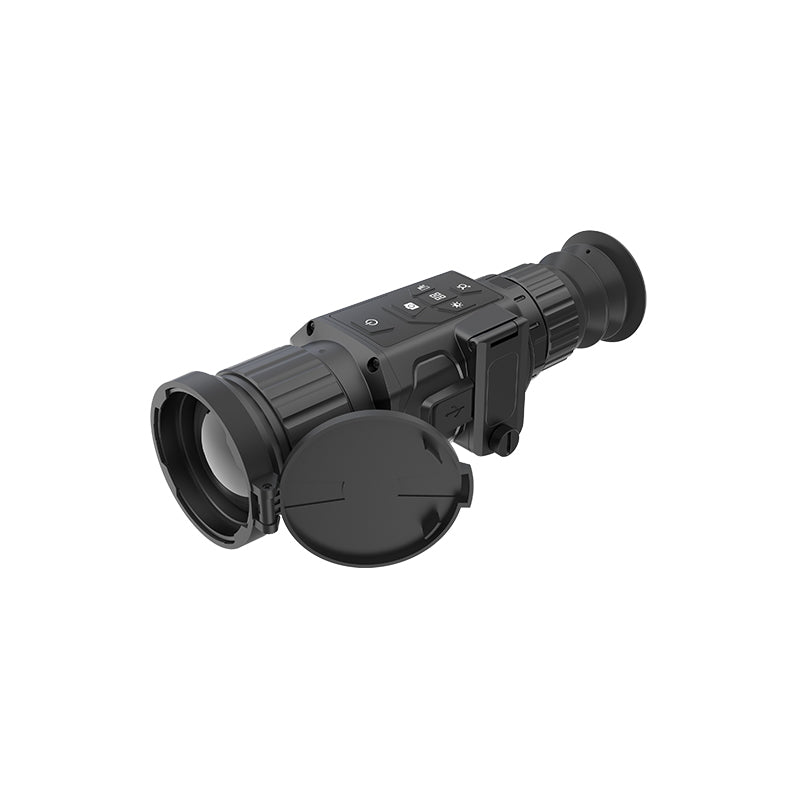

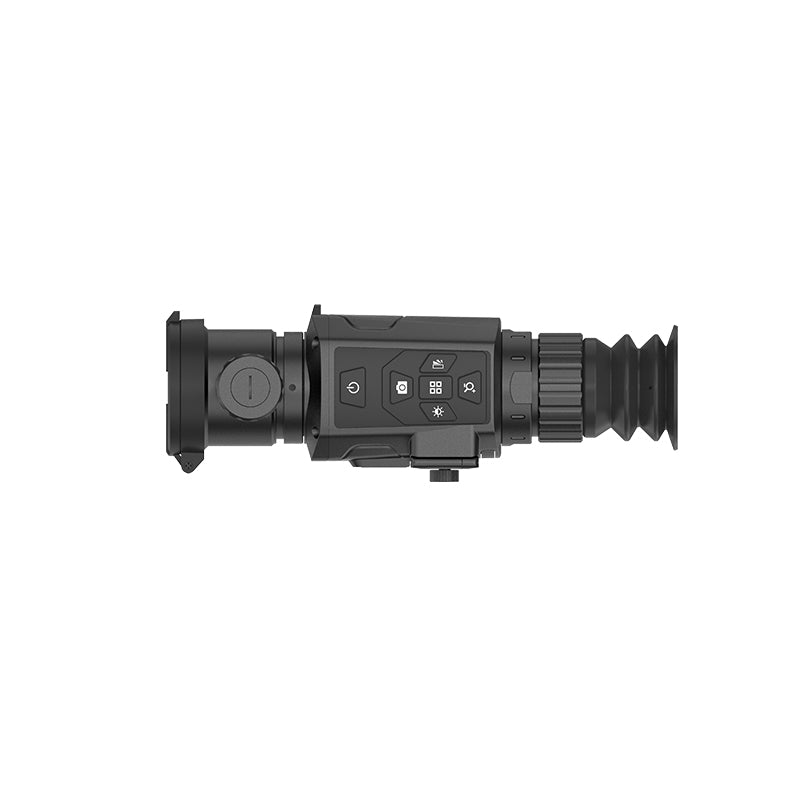

THERMAL IMAGING SIGHT HT-C19

HT-C18 single-lens outdoor thermal imaging telescope, featuring multi-focal lens switching, electronic zoom, hotspot tracking, and multiple pseudo-color display functions, is suitable for scenarios such as power inspection, fire rescue, security monitoring, and outdoor observation. It offers clear imaging, convenient operation, and durable protection.

Detector type:Uncooled Vox

Infrared resolution:640×512

Pixel size:12μm

NETD:<40mK@25℃,F#1.0

Frame Rate:50Hz

Focusing mode:Manual

Objective Lens:25mm/F1.0/17.5°x14.0°

Detection range:1300m

Magnification:1.2x

Digital Zoom:1×/2×/4×/8×

Eye Relief:36mm

Diopter:-5D~+5D

Display screen type:OLED

Display resolution:1440X1080

Display size:0.39 inch

PIP:Supported

Hot trace:Supported

Photo/Video:Supported

Storage(Built-in):16G EMMC

Battery:2*18350/1400mAh

Battery life:≥5h

Working temperature:-20℃ ~ +60℃

Waterproof Rating:IP66

Impact Test:1000G

Dimension:201×66×73mm

Weight (without battery):572g
